CRACK HUB

Wstairprop1

By Wstairprop1

 Share

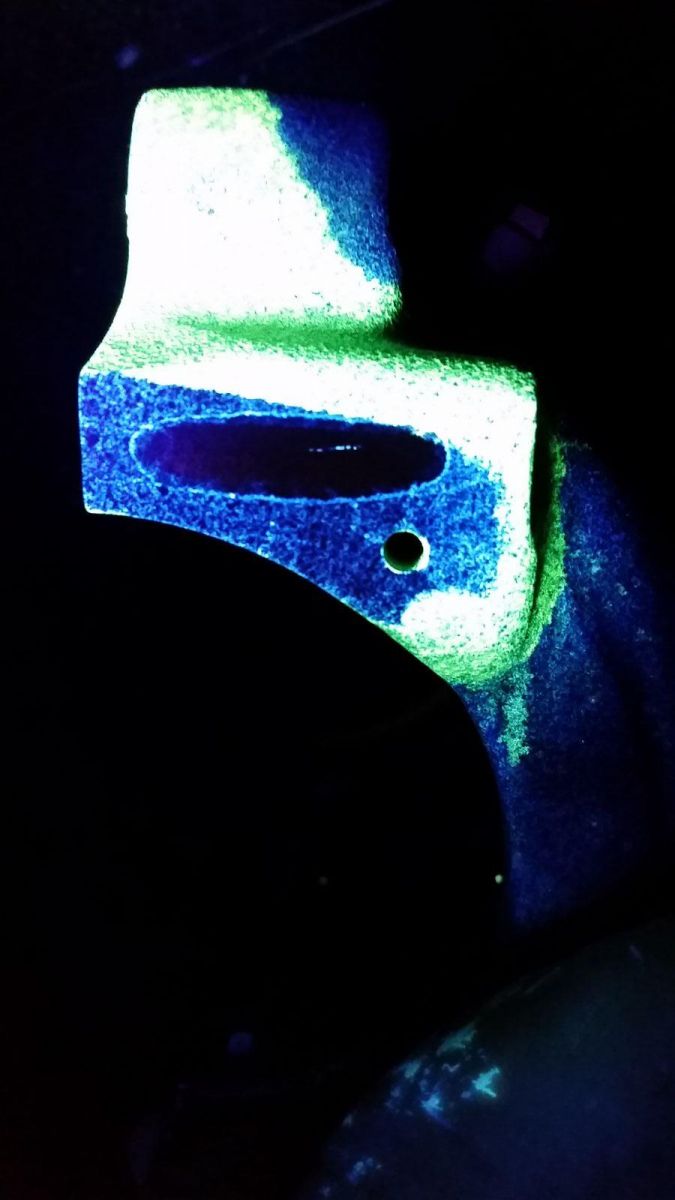

Everyone always says Hartzell Hubs its a scam to change your hubs out, they never had a cracked hub. Well we found two this last week and here is a picture of what it looks like.

From the category:

Member's Albums

· 1,167 images
  • 1,167 images
  • 177 image comments

Photo Information

  • Taken with SAMSUNG SAMSUNG-SM-G870A
  • Focal Length 4.8 mm
  • Exposure Time 1/15
  • f Aperture f/2.2
  • ISO Speed 800
View all photo EXIF information
 Share

Recommended Comments

aviatoreb

aviatoreb 7,877

Posted

Yikes!  Can you say more about what we are looking at - which plane - what prompted you to get an xray and so forth?

Wstairprop1

Wstairprop1 3

Posted

this is the propeller hub on a Mooney M20-C, we were doing the Eddy current inspection and got a reading that there was a crack. We removed the shotpeening dipped it in zyglo and the crack clearly showed up in the dark area.....
